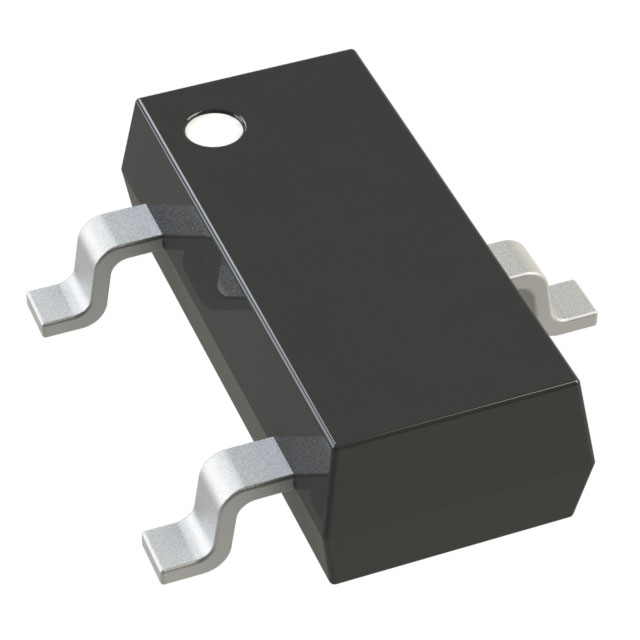

Image is for reference only.

Diodes Incorporated 2N7002K-7

Manufacturer Part #:

2N7002K-7

Manufacturer:

Diodes Incorporated

Package/Case:

SOT-23

Datasheet:

2N7002K-7

Description:

60V 380mA 3Ω@5V,310mA 370mW 2.5V 1 N-channel SOT-23 MOSFETs ROHS

Loading…

Specifications

Product Details

Type	Description	Select
Category	MOSFETs
Manufacturer	Diodes Incorporated
Package/Case	SOT-23
Operating Temperature	-55℃~+150℃
Input Capacitance(Ciss@Vds)	50pF@25V
Type	1 N-channel
Gate Threshold Voltage (Vgs(th)@Id)	2.5V
Gate Charge(Qg)	0.3nC
Current - Continuous Drain(Id)	380mA
Reverse Transfer Capacitance (Crss@Vds)	5pF@25V
Drain to Source Voltage	60V
Pd - Power Dissipation	370mW
RDS(on)	3Ω@5V,310mA
