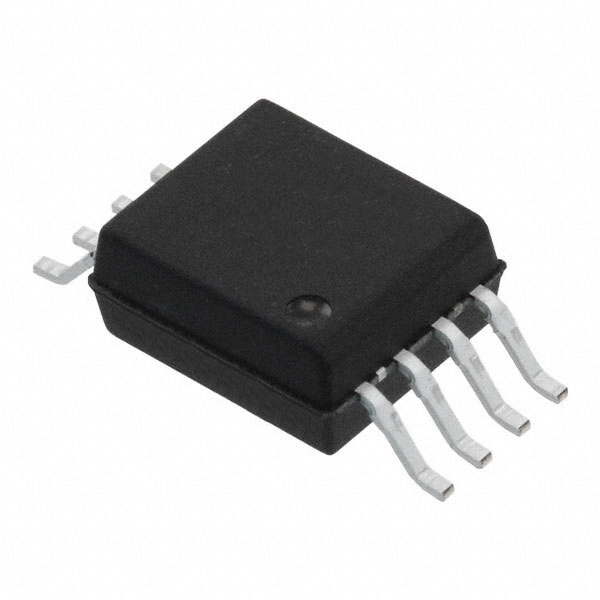

Image is for reference only.

Broadcom Limited ACPL-244-560E

Manufacturer Part #:

ACPL-244-560E

Manufacturer:

Broadcom Limited

Package/Case:

SOP-16-4.4mm

Datasheet:

ACPL-244-560E

Description:

80V 3.75kV 50mA 0.4V@8mA,2.4mA 4 6V 1.2V SOP-16-4.4mm Transistor, Photovoltaic Output Optoisolators ROHS

Loading…

Specifications

Product Details

Type	Description	Select
Category	Transistor, Photovoltaic Output Optoisolators
Manufacturer	Broadcom Limited
Package/Case	SOP-16-4.4mm
Load Voltage	80V
Operating Temperature	-55℃~+110℃
Rise time	2us
Output Type	Phototransistor
Output Current	50mA
Reverse Voltage	6V
Isolation Voltage(Vrms)	3.75kV
Current Transfer Ratio (CTR) Maximum/Saturation Value	400%
Number of Outputs	4
Input voltage type	-
Current Transfer Ratio (CTR) Minimum	20%
Vce Saturation(VCE(sat))	0.4V@8mA,2.4mA
Fall time	3us
Voltage - Forward(Vf)	1.2V
