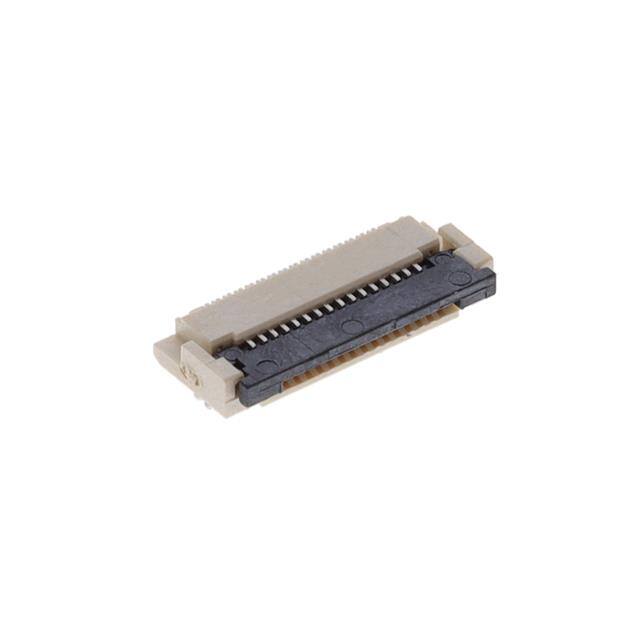

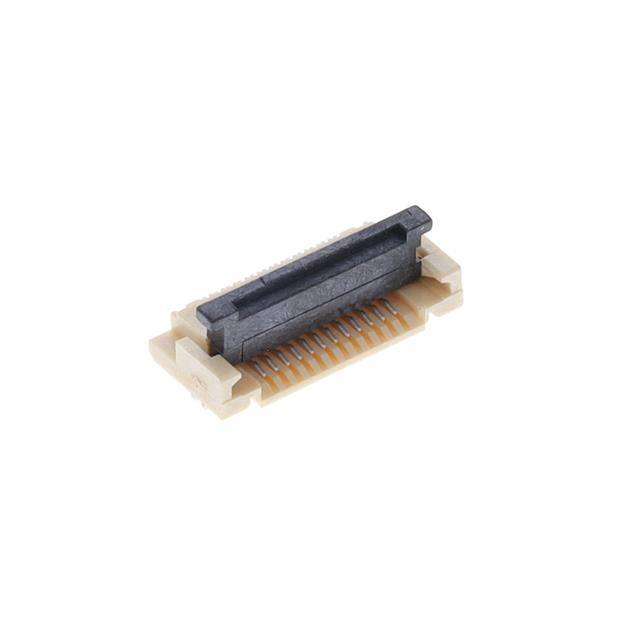

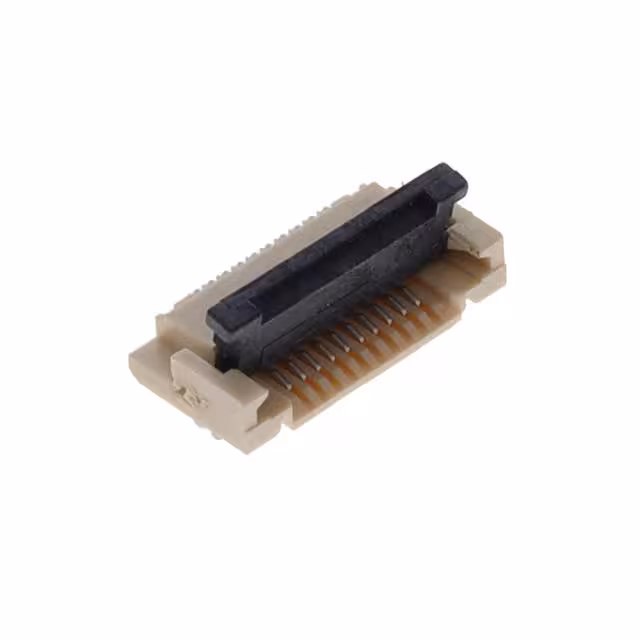

Image is for reference only.

Cvilux CF61202D0R0-05-NH

Manufacturer Part #:

CF61202D0R0-05-NH

Manufacturer:

Cvilux

Package/Case:

SMD,P=0.5mm,Surface Mount，Right Angle

Datasheet:

CF61202D0R0-05-NH

Description:

-40℃~+85℃ 20P Bottom Contact Horizontal attachment 0.5mm SMD,P=0.5mm,Surface Mount，Right Angle FFC, FPC (Flat Flexible) Connector Assemblies ROHS

Loading…

Specifications

Product Details

Type	Description	Select
Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	Cvilux
Package/Case	SMD,P=0.5mm,Surface Mount，Right Angle
Operating Temperature	-40℃~+85℃
Contact Plating	Gold
Pitch	0.5mm
Contact Material	Phosphor Bronze
Contact Type	Bottom Contact
Number of Contacts	20P
Height Above Board	1.75mm
Mounting Type	Horizontal attachment
FFC, FCB Thickness	0.3mm
