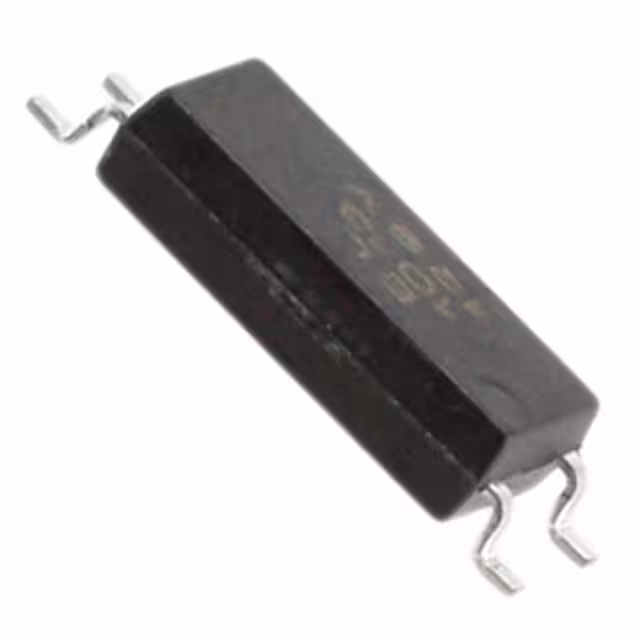

Image is for reference only.

Everlight Elec EL817S1(B)(TU)-F

Manufacturer Part #:

EL817S1(B)(TU)-F

Manufacturer:

Everlight Elec

Package/Case:

SOP-4-2.54mm

Datasheet:

Description:

35V 5000V 50mA 1 9V 1.2V SOP-4-2.54mm Transistor, Photovoltaic Output Optoisolators ROHS

Loading…

Specifications

Product Details

Type	Description	Select
Category	Transistor, Photovoltaic Output Optoisolators
Manufacturer	Everlight Elec
Package/Case	SOP-4-2.54mm
Load Voltage	35V
Operating Temperature	-55℃~+110℃
Rise time	4us
Output Type	Phototransistor
Output Current	50mA
Reverse Voltage	9V
Isolation Voltage(Vrms)	5000V
Current Transfer Ratio (CTR) Maximum/Saturation Value	260%
Number of Outputs	1
Input voltage type	-
Current Transfer Ratio (CTR) Minimum	130%
Vce Saturation(VCE(sat))	-
Fall time	3us
Voltage - Forward(Vf)	1.2V
