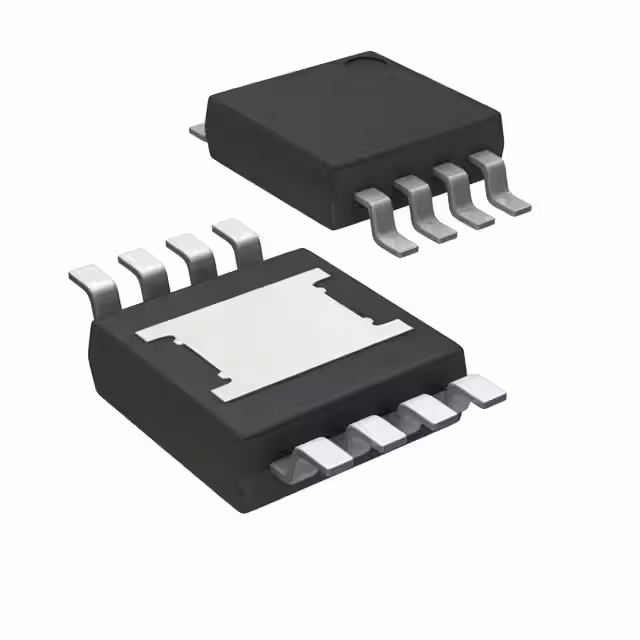

Image is for reference only.

Infineon Technologies IR2104STRPBF

Manufacturer Part #:

IR2104STRPBF

Manufacturer:

Infineon Technologies

Package/Case:

SOIC-8

Datasheet:

IR2104STRPBF

Description:

Half Bridge 2 130mA 100ns 50ns 10V~20V 270mA SOIC-8 Gate Drivers ROHS

Loading…

Specifications

Product Details

Type	Description	Select
Category	Gate Drivers
Manufacturer	Infineon Technologies
Package/Case	SOIC-8
Operating Temperature	-40℃~+150℃@(Tj)
Rise Time	100ns
Driven Configuration	Half Bridge
Voltage - Supply	10V~20V
Current - Output High(IOH)	130mA
Number of Drivers	2
Load Type	MOSFET;IGBT
Fall Time	50ns
Current - Output Low(IOL)	270mA
