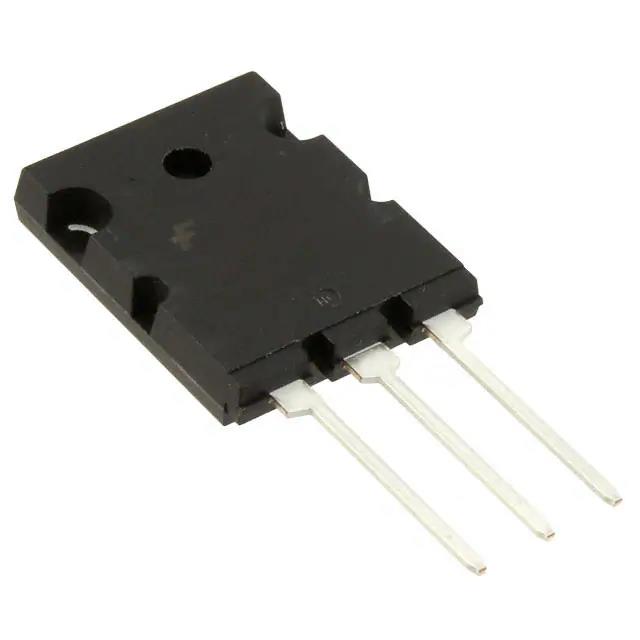

Image is for reference only.

onsemi NGTB15N120FL2WG

Manufacturer Part #:

NGTB15N120FL2WG

Manufacturer:

onsemi

Package/Case:

TO-247-3

Datasheet:

NGTB15N120FL2WG

Description:

294W 30A 1200V FS(Field Stop) TO-247-3 IGBT Transistors / Modules ROHS

Loading…

Specifications

Product Details

Type	Description	Select
Category	IGBT Transistors / Modules
Manufacturer	onsemi
Package/Case	TO-247-3
Gate-Emitter Threshold Voltage (Vge(th)@Ic)	-
Operating Temperature	-55℃~+175℃@(Tj)
Input Capacitance(Cies)	-
Td(off)	132ns
Gate Charge(Qg)	109nC
Switching Energy(Eoff)	0.37mJ
Turn-On Energy (Eon)	1.2mJ
Collector-Emitter Breakdown Voltage (Vces)	1200V
Reverse Recovery Time(trr)	110ns
Current - Collector(Ic)	30A
Pd - Power Dissipation	294W
Td(on)	64ns
IGBT Type	FS(Field Stop)
