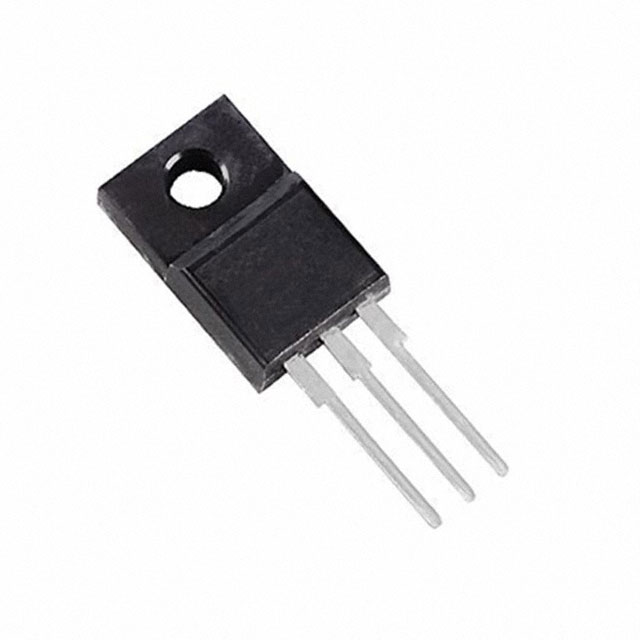

Image is for reference only.

STMicroelectronics STGP19NC60KD

Manufacturer Part #:

STGP19NC60KD

Manufacturer:

STMicroelectronics

Package/Case:

TO-220

Datasheet:

STGP19NC60KD

Description:

125W 35A 600V TO-220 IGBT Transistors / Modules ROHS

Loading…

Specifications

Product Details

Type	Description	Select
Category	IGBT Transistors / Modules
Manufacturer	STMicroelectronics
Package/Case	TO-220
Gate-Emitter Threshold Voltage (Vge(th)@Ic)	-
Operating Temperature	-55℃~+150℃@(Tj)
Input Capacitance(Cies)	-
Td(off)	105ns
Gate Charge(Qg)	55nC
Switching Energy(Eoff)	0.255mJ
Turn-On Energy (Eon)	0.165mJ
Collector-Emitter Breakdown Voltage (Vces)	600V
Reverse Recovery Time(trr)	31ns
Current - Collector(Ic)	35A
Pd - Power Dissipation	125W
Td(on)	30ns
IGBT Type	-
