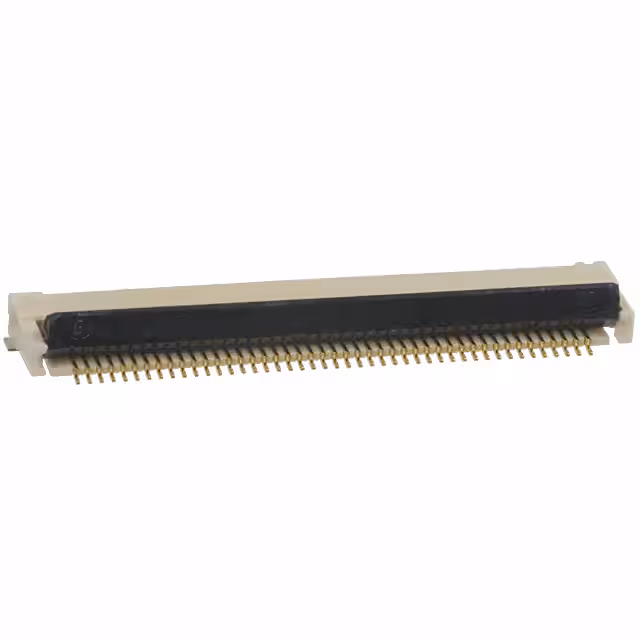

Image is for reference only.

Omron Electronics XF3M-8015-1BE

Manufacturer Part #:

XF3M-8015-1BE

Manufacturer:

Omron Electronics

Package/Case:

SMD,P=0.5mm,Surface Mount，Right Angle

Datasheet:

Description:

-30℃~+85℃ 80P Dual-sided contacts / top and bottom connection Horizontal attachment 0.5mm SMD,P=0.5mm,Surface Mount，Right Angle FFC, FPC (Flat Flexible) Connector Assemblies ROHS

Loading…

Specifications

Product Details

Type	Description	Select
Category	FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer	Omron Electronics
Package/Case	SMD,P=0.5mm,Surface Mount，Right Angle
Operating Temperature	-30℃~+85℃
Locking Feature	-
Contact Plating	Gold
Pitch	0.5mm
Contact Material	Copper alloy
Contact Type	Dual-sided contacts / top and bottom connection
Number of Contacts	80P
Height Above Board	2mm
Mounting Type	Horizontal attachment
FFC, FCB Thickness	0.3mm
