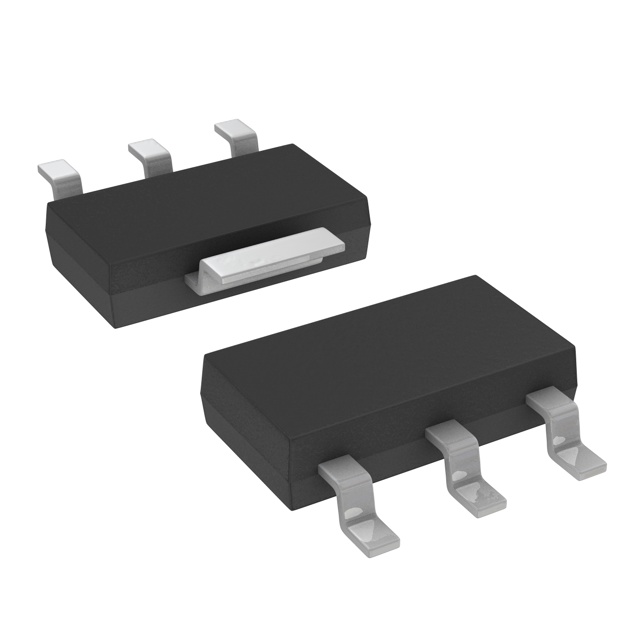

Image is for reference only.

STMicroelectronics Z0107NN5AA4

Manufacturer Part #:

Z0107NN5AA4

Manufacturer:

STMicroelectronics

Package/Case:

SOT-223

Datasheet:

Z0107NN5AA4

Description:

10mA 5mA 800V SOT-223 Thyristors (SCR)/Modules ROHS

Loading…

Specifications

Product Details

Type	Description	Select
Category	Thyristors (SCR)/Modules
Manufacturer	STMicroelectronics
Package/Case	SOT-223
Operating Temperature	-40℃~+125℃
Current - On State(It(RMS))	1A
Gate Trigger Voltage (Vgt)	1.3V
Output Type	-
Holding Current (Ih)	10mA
Current - Surge(Itsm@f)	8A@50Hz
Voltage - On State(Vtm)	1.6V
Average Gate Power Dissipation (PG(AV))	1W
Current - Gate Trigger(Igt)	5mA
Peak off - state voltage(Vdrm)	800V
